Description

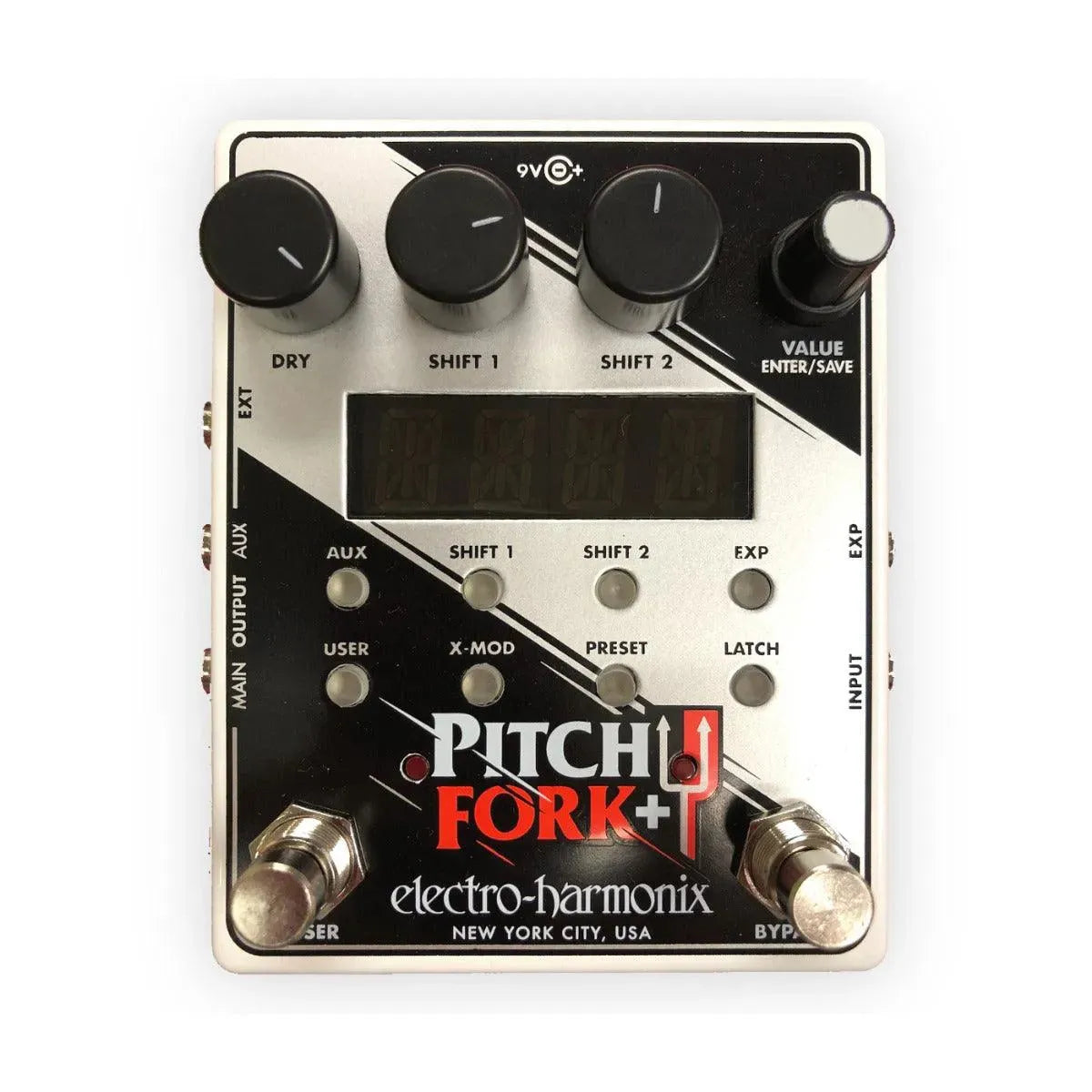

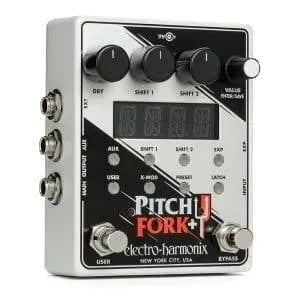

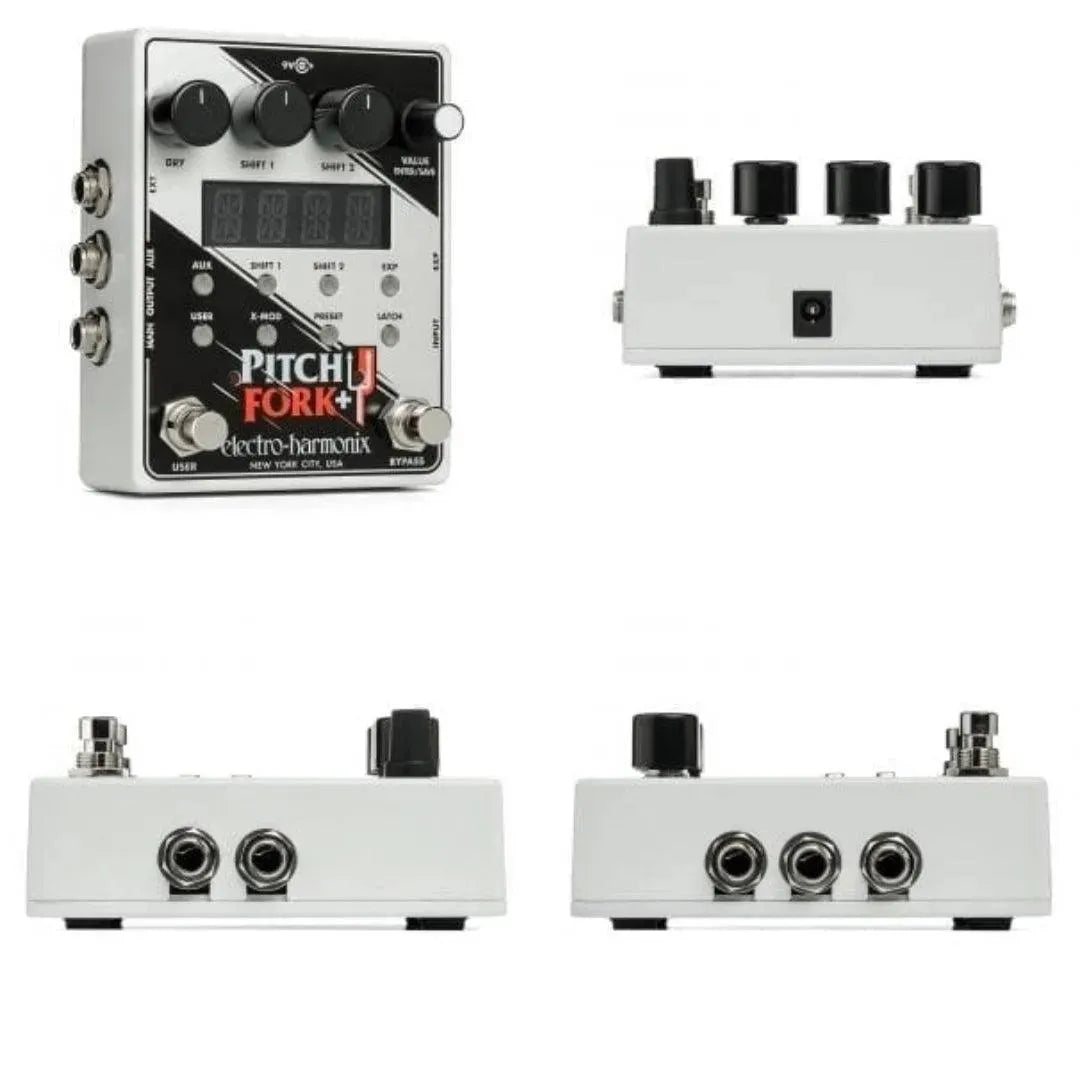

The Pitch Fork + is a dual engine pitch shifting with nearly endless possibilities and expansive control options! It features two independent pitch shifting engines with full control over each. Both will transpose your pitch up or down over a +/- three octave range and detune +/-99 cents. With rock solid tracking, an organic, musical tone and extensive control, its your ultimate harmonizer.
Features
Dedicated volume controls for both Shift voices and the Dry signal
Two outputs, Main and Aux, with multiple routing options
10 unique factory presets plus the ability to easily save/recall 100 programs
A Bypass footswitch that toggles between effect on and buffered bypass. In latch mode it switches between effect and bypass mode. In Momentary mode the effect is on when the FS is held down and the pedal enters bypass when its released
A User footswitch thats programmable and can be assigned to a variety of functions such as muting either Shift voice or jumping to a preset program. It features a dedicated LED
An EXP input for EXP or CV control over a broad selection of parameters in three sub-menus: Frequency, Glissando and Volume
An EXT input for connecting an external foot controller like EHXs Triple Foot
Controller which enables players to change modes, enter/exit sub-menus and load presets
Eight modes including X-MOD which features cross modulation that creates FM and ring mod type effects and LATCH which provides enhanced Latch and Momentary functionality
Specifications
Circuit Digital
Bypass True bypass
Audio Mono
Power Supply 9.6VDC-200mA power adapter included
Dimensions (inches) 4.75 x 4.13 x 2.25
Current Draw 120mA
