Description
The Schertler DYN-V-P48?is a fully balanced, active, dynamic contact microphone with Class A electronics. Specially designed to enhance the natural qualities of the violin and viola in both amplified and recording environments, the microphone features state-of-the-art, in-house developed activefiltering technology that has enabled it to be precisely matched to the instruments sound characteristics. This leads to more immediate results for the user, making it possible to achieve amazing sound with only minimal adjustments required.

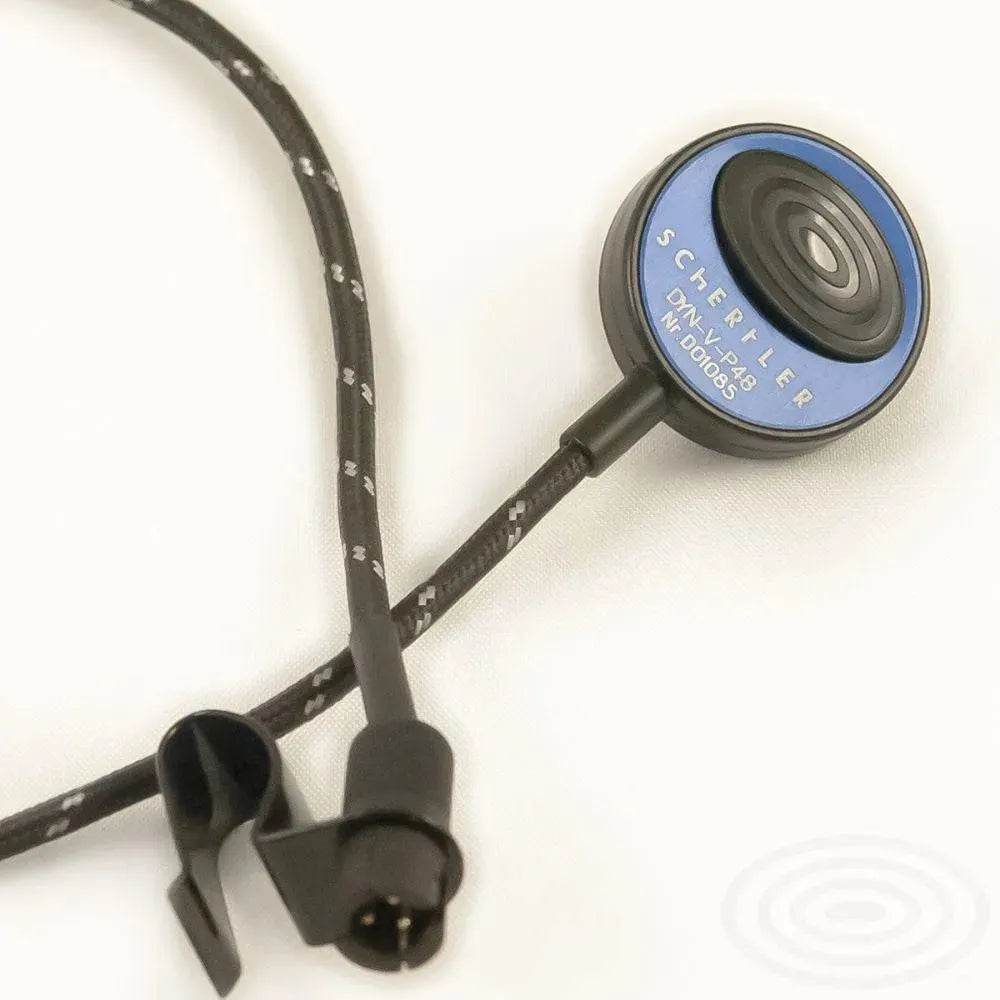

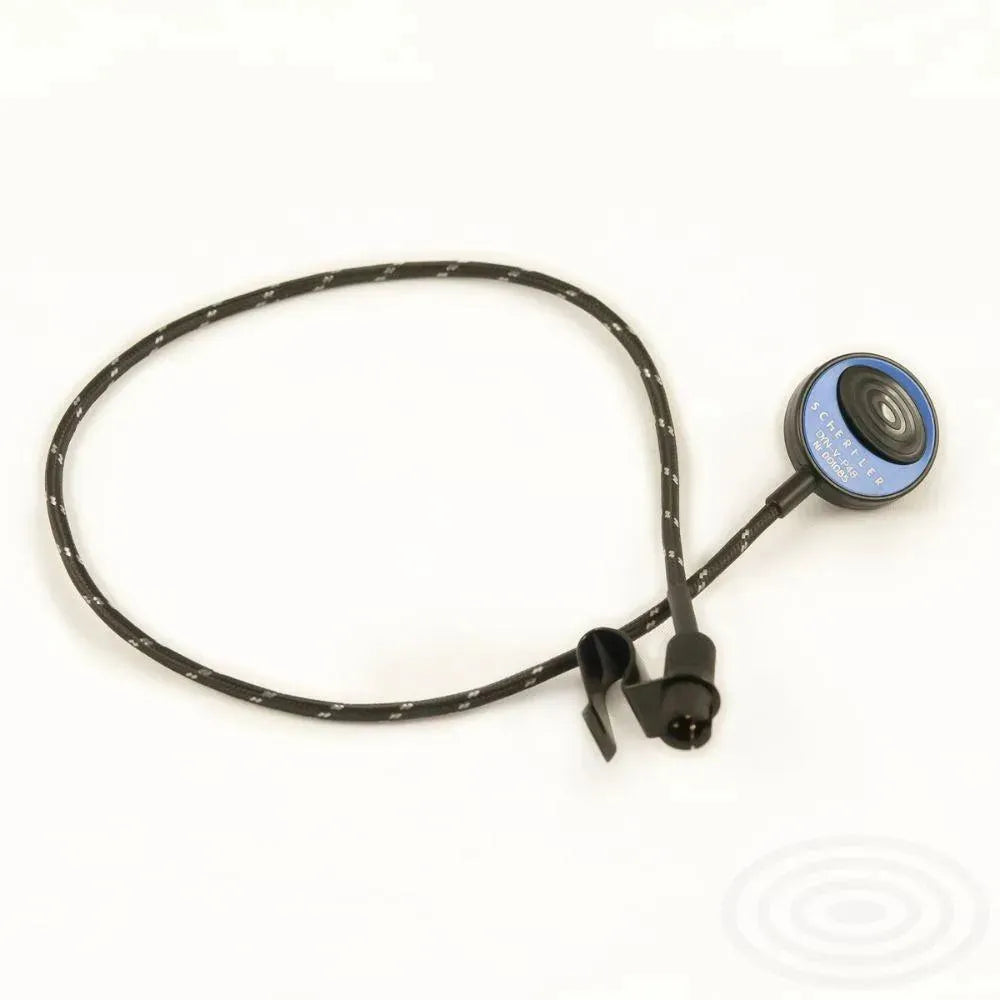

The?DYN-V-P48?has a sleek, lightweight design. The microphone is supplied with Schertlers own customized cable that is both robust and torsion resistant, designed to withstand the rigours of daily use while delivering best possible performance results. A balanced XLR connector enables direct connection to a microphone input on a mixing console, as well as to a full range amplification system.

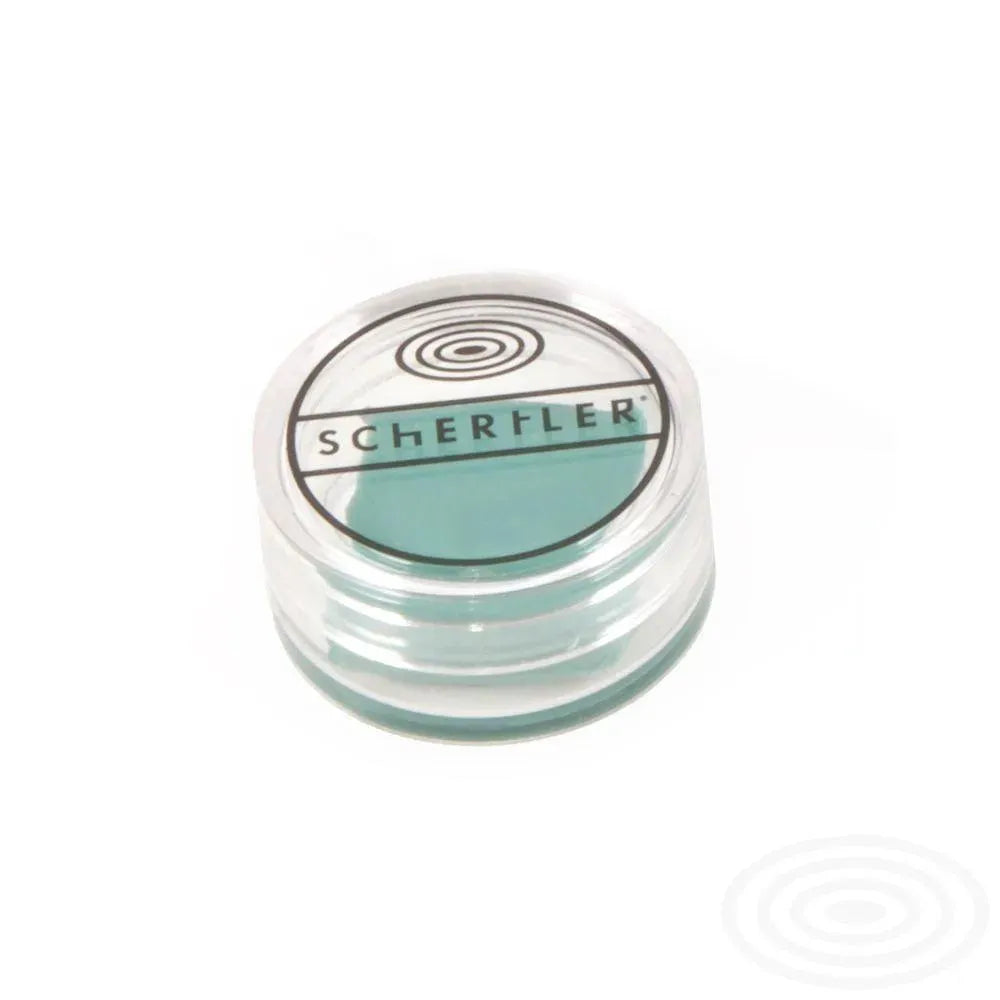

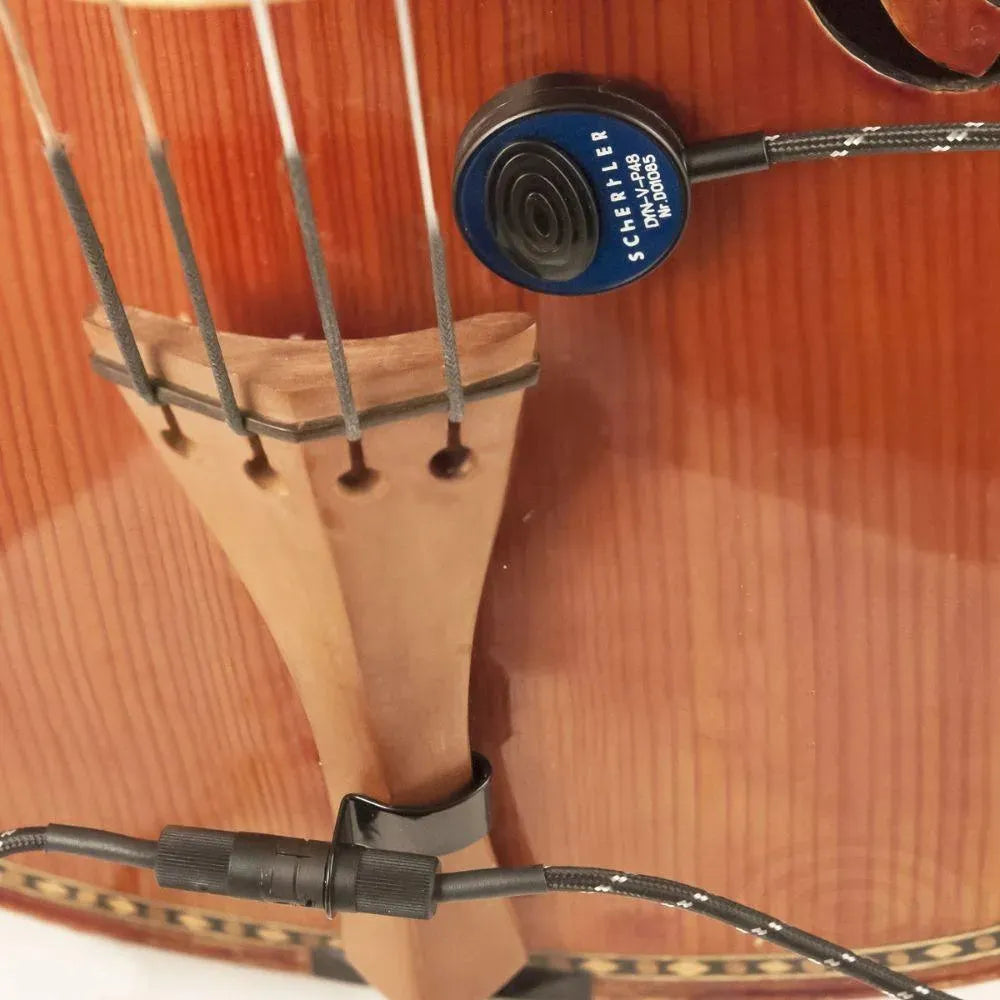

The?DYN-V-P48?can be easily and safely applied to even the most valuable of instruments using special adhesive putty. It can also be quickly transferred between instruments during performances or recording sessions.
Note: This microphone?requires 48V phantom power.
Technical Speicifications
Output impedance 4.7 Kohm @ 1 KHz
Frequency Response 20 Hz to 20 kHz
Dynamic range 139 dB, 145 dB typical
Sensitivity (on instrument) ca. -30 dB
Sensitivity (theoretical) -62 dB/@ 1um ampl.
Mechanical decoupling Butterworth 2nd order, Q=6
Temperature range -20? C to +70? C
Minimum operating voltage 22 VDC
Active EQ Customized for each instrument
Electronics all Class-A
Contacts All hard gold plated 0.5 mm
Connection XLR balanced + Binder
Cable Length 2.2m
