Description

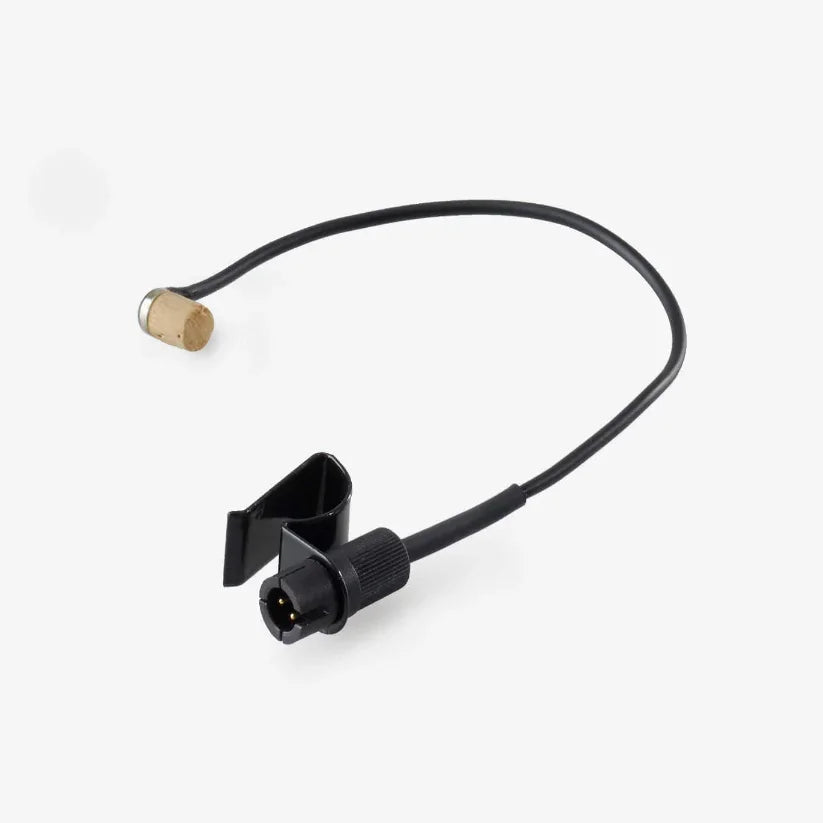

The STAT pickup system represents one of Schertlers most well-established technologies. Over the decades it has become a standard in the field of high-end, acoustic bowed instrument amplification. Specially developed for use in louder musical environments, and impressively resistant to feedback, the bridge-mounted STAT microphone is an ideal choice for jazz, fusion, rock or classical performances involving high levels of amplification.
STAT is designed to accurately reproduce the warm sound of the instrument strings during performance, giving depth and body to the lower ones while reproducing the clarity and brightness of the upper ones.

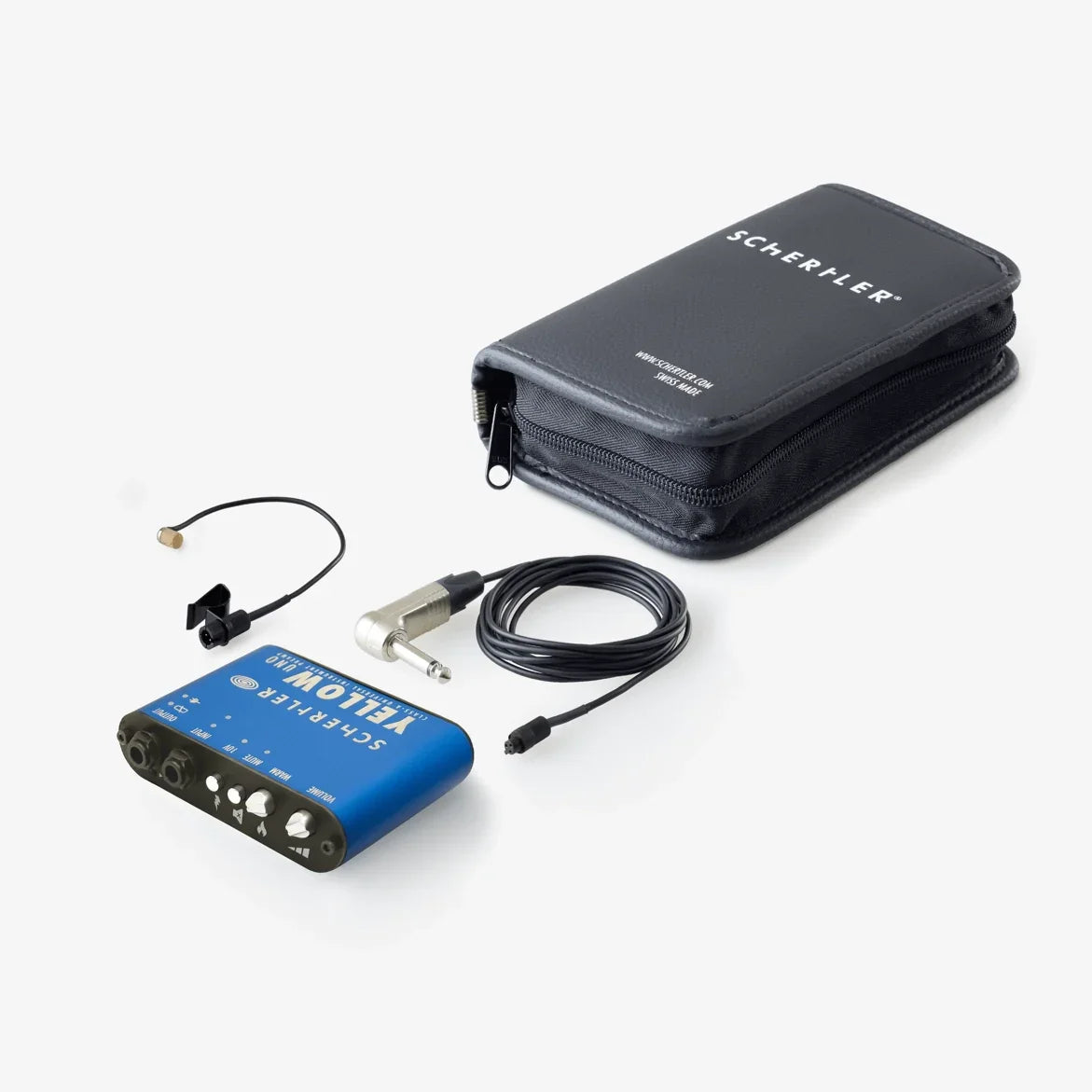

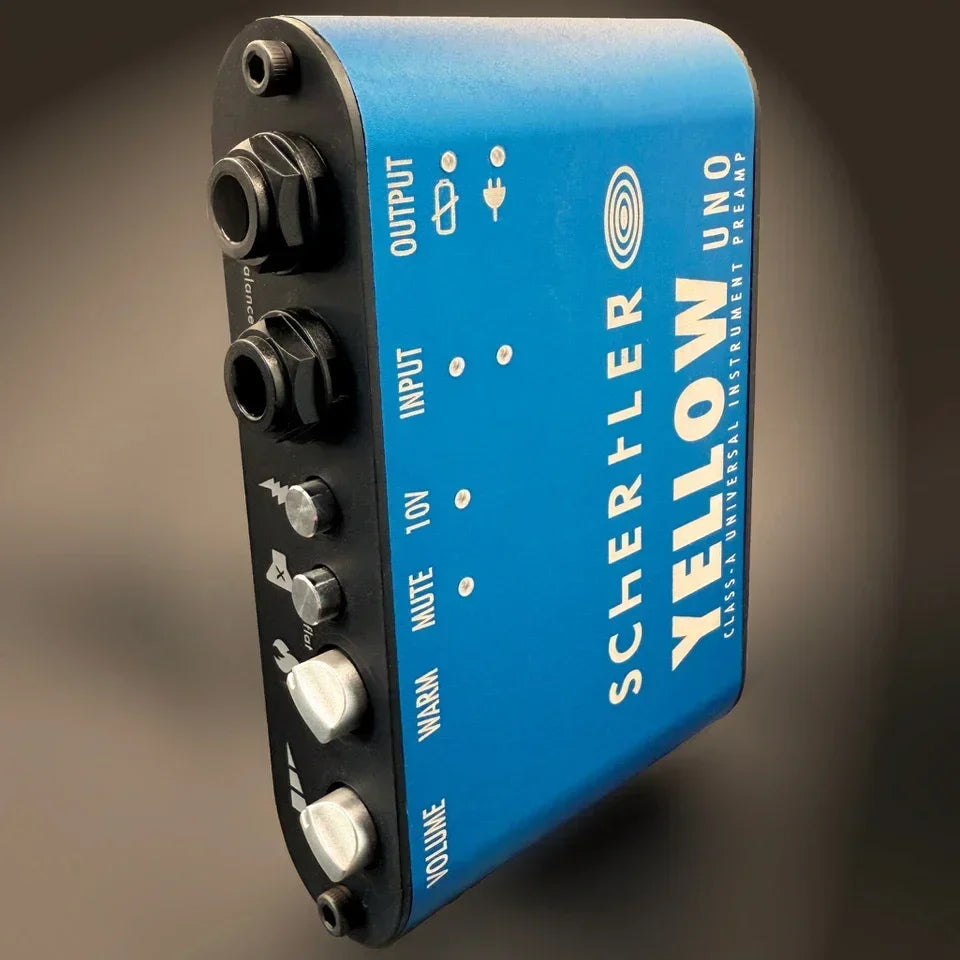

STAT UNO combines the STAT pickup with the battery-powered YELLOW UNO preamplifier. The package includes a connection cable and padded bag.
TECHNICAL SPECS
Transducer type Electro-static contact microphone
Output impedance (@ 1 kHz) 2 k?
Frequency Response (@ ?3dB) – filtered * 60 to 12 kHz
Sensitivity ca. -20 dBu
Dynamic range 70 dB
Operating voltage 3 to 10 VDC
Contacts All hard gold plated 0.5 mm
Removable Yes
Connection Binder – 1/4 jack
Cable Length 0.17 m + extra cable 2.25 m
Note *Output frequency response is filtered electronically to better match the specific application.
